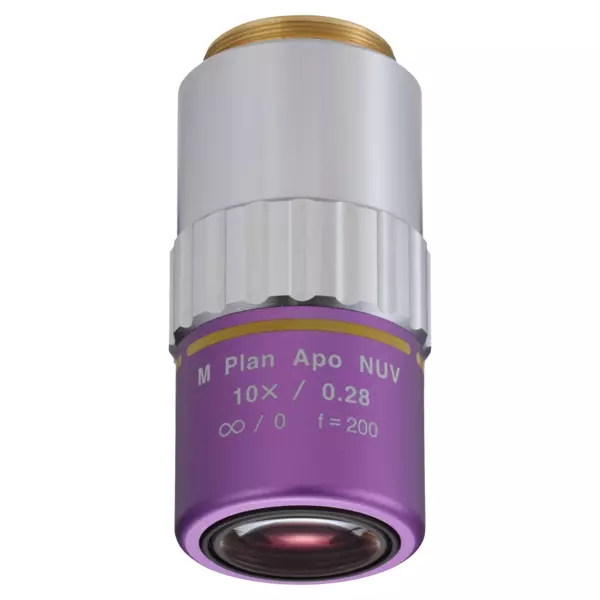

Microscope Objective – M Plan APO NUV 10X Mitutoyo
Technical specifications
| Model: |
M Plan Apo
NUV 10X |
| Functions: |
Near-ultraviolet wavelength Corrected |
| Magnification: |
10x
|
| Working distance: |
In Air: 30.5 mm
|
| Corrected Wave Length: |
355-620 nm
|
| N.A.: |
0.28
|
| f: |
20 mm
|
| P.D.: |
95 mm
|
| R: |
1 µm
|
| D.F.: |
3.5 μm
|
| FOV 1: |
ø2.4 mm
|
| FOV 2: |
0,48 x 0,64 mm
|
| Abbreviations in product table: |
N.A.: Numerical aperture
W.D.: Working distance P.D.: Parfocal distance f: Focal distance R: Resolving power D.F.: Depth of focus FOV 1: Field of view when using ø24 mm eyepiece FOV 2: Field of view when using a digital camera with 1/2″ chip size |
| Mass: |
255 g
|
€3,591.00
1 in stock
Description
- Suitable for Bright Field Inspection and Laser Applications
- Long Working Distance
- High Quality Plan Apochromat Design
- Wavelength correction from Visible to Near Ultraviolett (355 nm)
- High Power Type available (M Plan Apo NUV HR)
